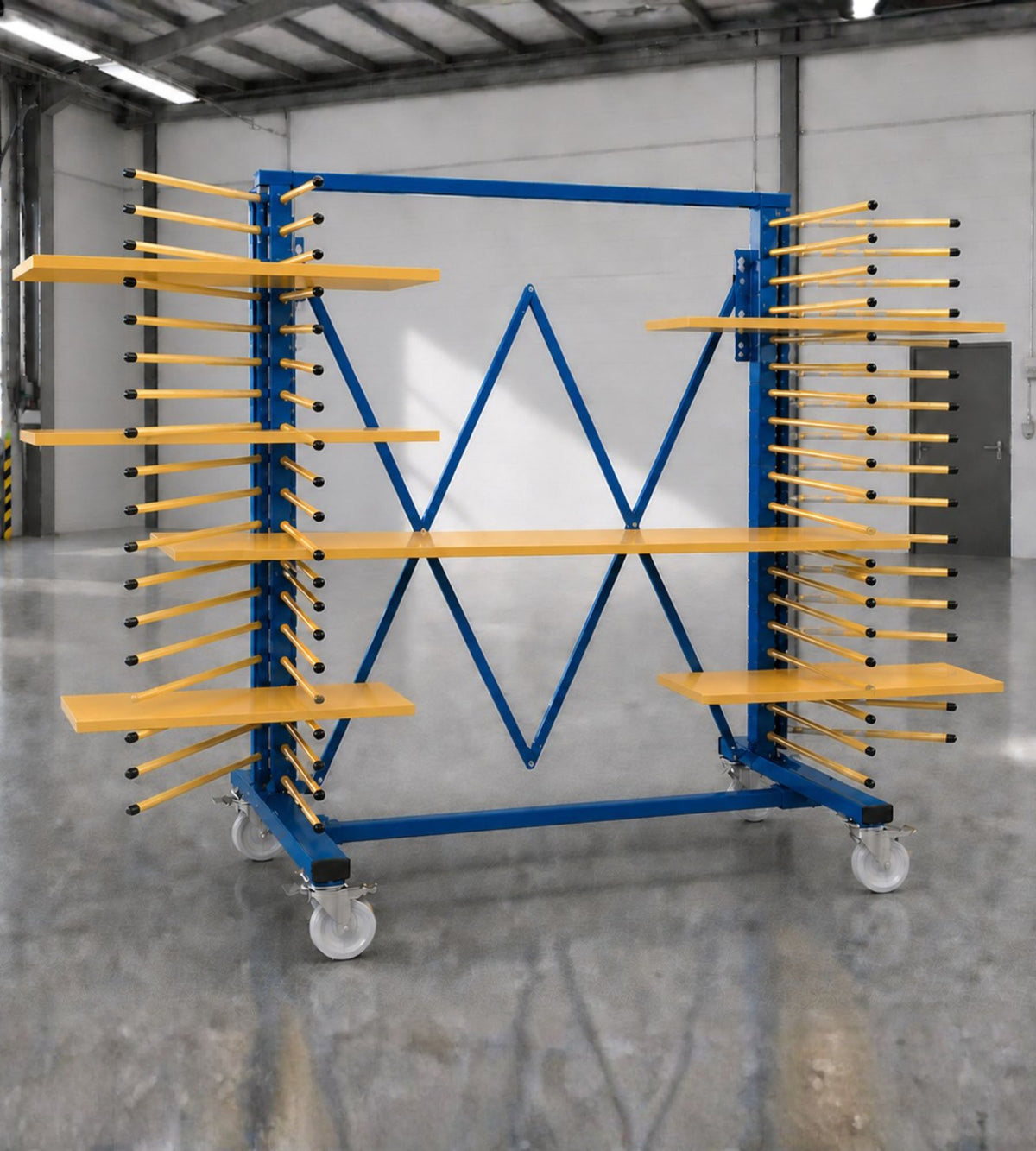

EuroSys TWIN paint drying trolley

Flexible, robust and extremely strong

Product advantages

•  The outer rakes can be swiveled out up to 180°
•  Stable supports with galvanized inner tubes that can be pulled out to the front and back
  from 600 - 900 mm
•  Swivel rakes - therefore also suitable for a wide variety of workpieces
•  Can be loaded at the front and also at the back
•  Support rods can be quickly removed at any time and thus the
  Distances can be optimally adjusted
•  Expandable with intermediate rakes
•  Standard, high-quality yellow plastic coating - protects surfaces
•  Large swivel castors, rubber/polyamide, 2 with brakes, D: 200 mm
•  Thanks to a further reinforced frame and the possibility of
  Each support has to be plugged twice (4 tubes). This means the highest loads
  guaranteed.
•  Also with this model, any additional intermediate rakes can be used    become.In addition, the outer rake can be swung out and therefore also  smallestWorkpieces can be stored optimally.

Technical data:

- Height 1960mm
- 4 swivel castors (2 of them with brakes)
- Load capacity 800 kg
- Number of floors: 17 on one side, up to 85 (optional on both sides)
- Distance per support: 70mm
- Length from/to: 400 - 2000 mm (up to 2500 mm optional)
- Load capacity per tier 85 kg (double inserted)
- Load capacity per trolley 800 kg
